Description

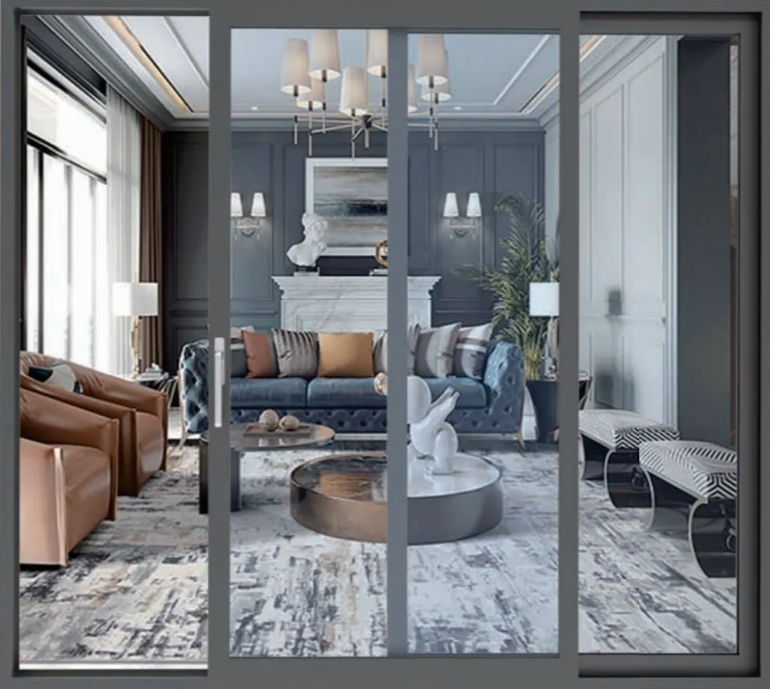

LIFTING AND SLIDING DOOR SYSTEM

ACCESSORIES LIST

1. Door handle

• Code: ZMZS9711
• Quantity: 1
• Remark: P81, Anodizing, Optional

2. Transmission lock

• Code: ZTTL110-01
• Quantity: 1

3. Support block

• Code: ZTTL100-02
• Quantity: 8

4. Front roller

• Code: ZTTL110-02
• Quantity: 1

5. Back roller

• Code: ZTTL110-03

• Quantity: 1

6. Lock catch

• Code: ZTTL100-05
• Quantity: 3

7. Connecting rod

• Code: ZTTL110-04-L
• Quantity: 1
• Remark: The speciifcation depends on the window type

8. Support seat

• Code: ZTTL100-08
• Quantity: 1

9. Waterproof cover

• Code: ZTTL100-09
• Quantity: 2

10. Anti-strike block

• Code: ZFZK10
• Quantity: 1

11. Ventilation anti-theft locking plate

• Code: ZTTL110-05
• Quantity: 1

PRODUCT FEATURES

1. The maximum weight of sash is 150kg.
2. Pay attention to the installation position of the lock catch when selecting profiles.
3.  If the handle needs driilling for cyclinder, pleaase consult the technician.
4. The maximum sash width is 300mm, the maimum doorway height is 2800mm, and the maximum sash height is 2675mm.
