Description

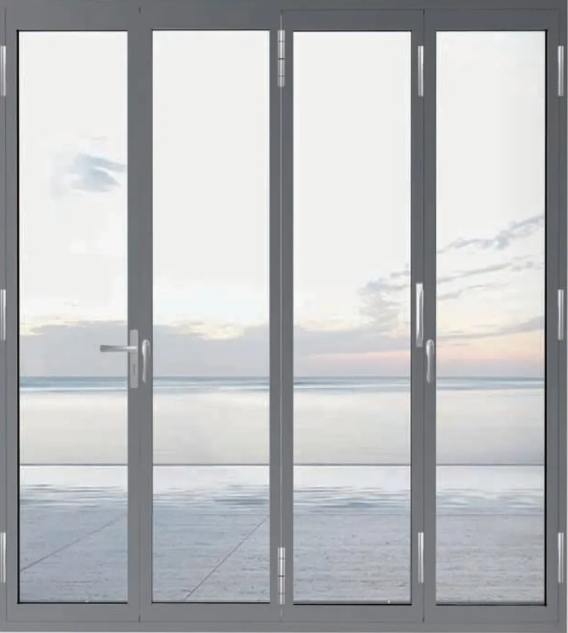

SLIDING AND FOLDING SYSTEM

ACCESSORIES LIST

1. Handle

• Code: ZMZS1730
• Quantity: 1
• Remark:  P82, Baking finish, Optional

2. Door lock

• Code:   ZMSB3211/II

• Quantity: 1
• Remark: P125

3. Cover plate

• Code: ZKMB12
• Quantity: 1
• Remark:  P129

4. Transmitter

• Code: ZCDQ211
• Quantity: 2
• Remark: P122

5. Handle

• Code: ZCZS8520

• Quantity: 2
• Remark: P62, Baking finish, Optional

6. Latch

• Code: ZCXA23A
• Quantity:  4

7. Cylinder

• Code: ZKIL4747/T
• Quantity:  1
• Remark: Accordig to the profile thickness

8. Upper hinge system

• Code: ZFTL100-01
• Quantity: 1
• Remark: Baking finish

9. Bottom hinge system

• Code: ZFTL100-02
• Quantity: 1
• Remark: Baking finish

10. Side hinge

• Code: ZFTL100-05
• Quantity: 8
• Remark: Baking finish

11. Handle hinge

• Code: ZFTL100-06
• Quantity:1
• Remark: Baking finish

CONFIGURATION SPECIFICATION

1.  The upper hinge system is self balance, which imakes the door leaf easier and smoother to operate, and it can bear load up and down.
2. It can meet the odd-numbered sash configuration, suc as 431, 633, etc., and the door width is 800mm, door height is 2400mm, and the door weihgt is less than 90kg.
3. Please maintain the hardware regularly.
