Description

Technical Parameter

Applicable Maximum Door Weight: 75 kg
Door Thickness: 40-50 mm
Applicable Door Width: 600-900 mm
Door Height: ≤ 3300 mm
Height Adjustments: +/- 4mm
Horizontal Adjustment: +/- 4mm
Applicable Door Type:

ONE-WAY FOLDING

• 2 leaves one-way folding
• 3 leaves one-way folding
• 4 leaves one-way folding
• 5 leaves one-way folding
• 6 leaves one-way folding

TWO-WAY FOLDING

• 4 leaves two-way folding
• 6 leaves two-way folding
• 8 leaves two-way folding

• 10 leaves two-way folding
• 12 leaves two-way folding

Main parts: 304 Stainless steel (natural color)
Hinge: Stainless steel (Matte)
Hanging rail: Aluminum Alloy (anodized, silver white),
Bottom Guide Rail: Aluminum Alloy (anodized, silver white)
Latch: 304 Stainless steel (matte), Zinc Alloy (nickel plated)
Pulley: Bearing GCr15 (natural color) + POM (White)

Function and Characteristics

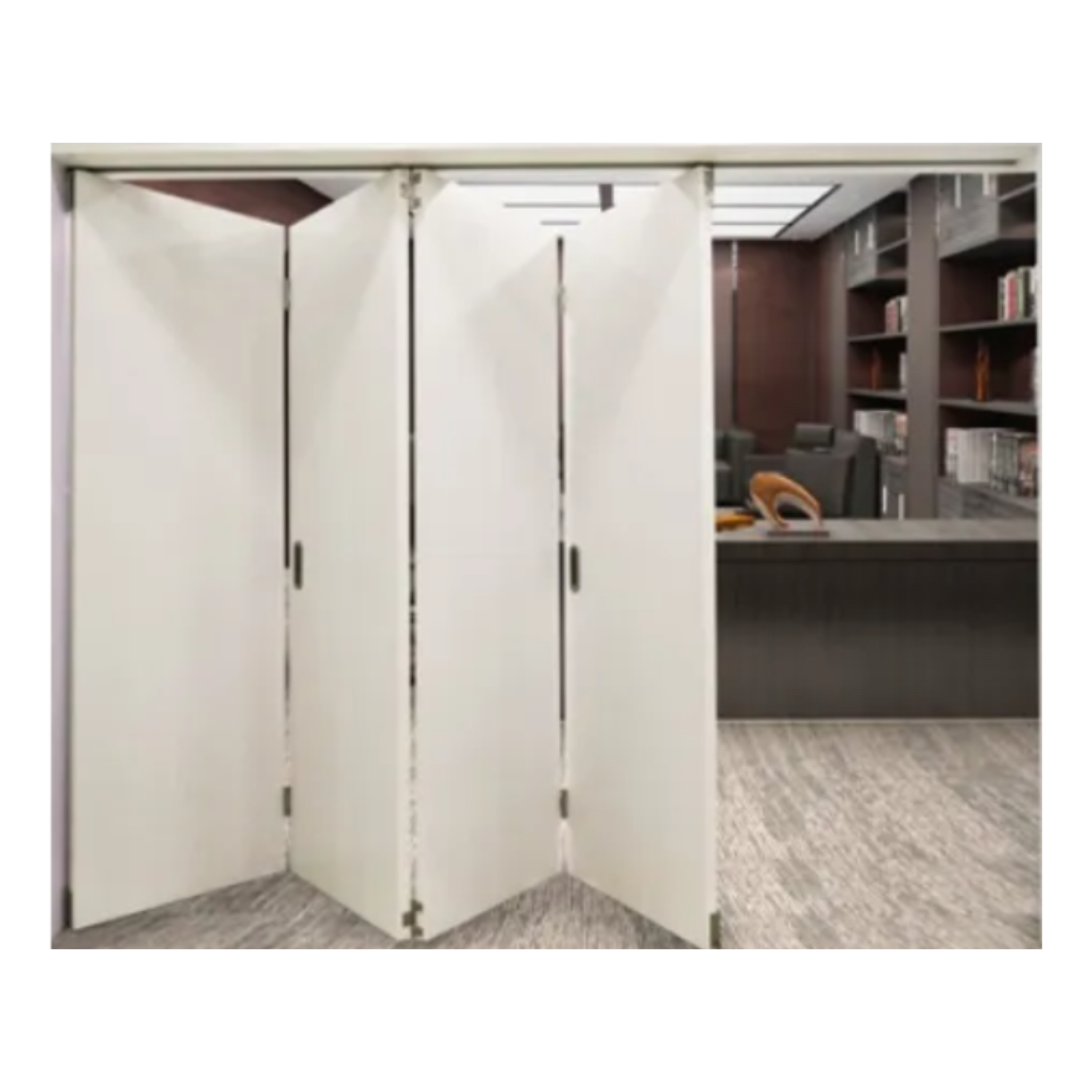

• Suitable for multi one way or two way wooden folding doors,
• suitable for commercial and public areas, eccentric structure design, suitable for door frame structure with and without notches open the foldable door to the side against the wall, and close the extendable doors as an indoor screen,
• parallel arc shaped boss at the bottom of the hanging rail, which can be self-guided,self cleaning and automatic compensation, bottom guide rail keeps door sash stable in sliding and standing state, pulley with high toughness,
• self lubricating functions and mute vibration reduction, hinge through shaft design to prevent hinge from failing off
