Description

CONCEALED CASEMENT DOOR

ACCESSORIES LIST

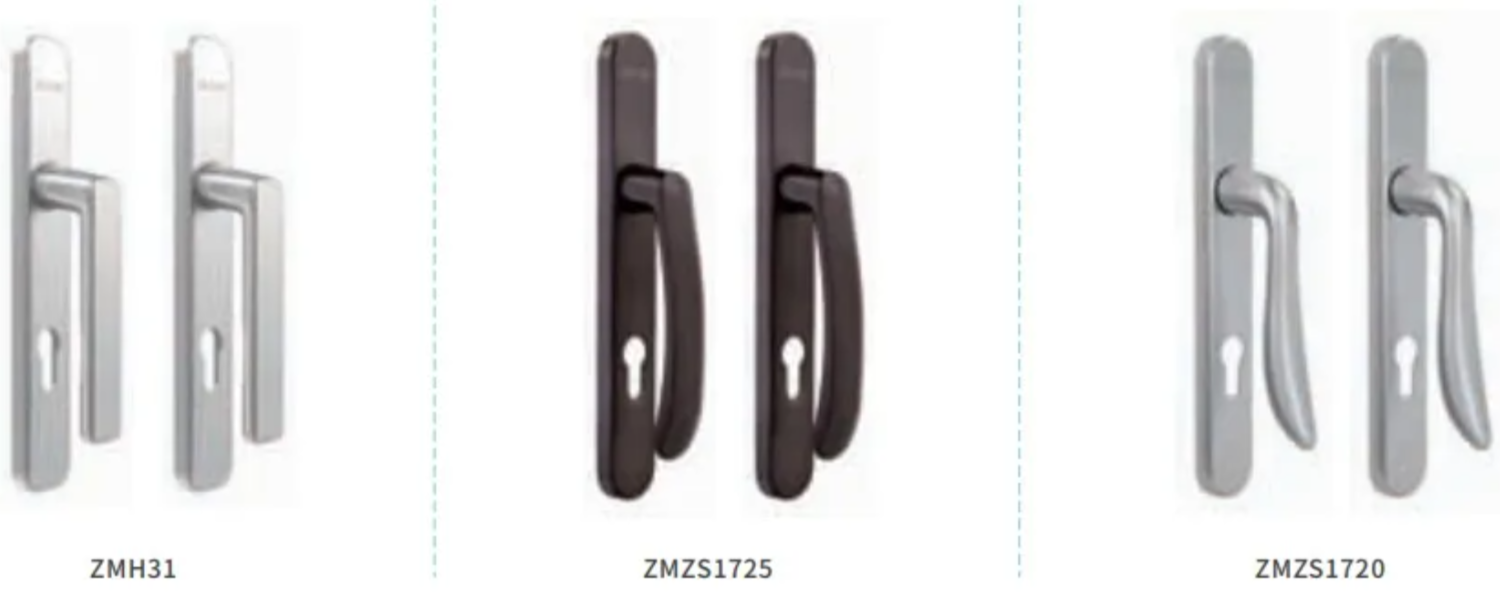

1. Door handle

• Code: ZMH31
• Quantity: 1
•  Remark: P78, Oxidation, Optional

2. Door lock

• Code: ZMSB3211/I
• Quantity: 1
•  Remark: P125

3. Cover plate

• Code: ZKMB12
• Quantity: 1
•  Remark: P129

4. Side transmission rod

• Code: ZCDG713/I
• Quantity: 2
•  Remark: P131

5. Lock plate

• Code: ZSKA15-R
• Quantity: 2
•  Remark: P138, Left & Right,

6. Concealed hinge door

• Code: ZMHY870-SR
• Quantity: 1
•  Remark: P112, More Optional ZMHY179-R

7. Concealed hinge door

• Code: ZMHY870-XR
• Quantity: 1
•  Remark: P112, More Optional ZMHY179-R

          8.  Cylinder

• Code: ZKIL3737/T
• Quantity: 1
•  Remark: Specification depends on profile thickness

SPECIFICATION

1. Hinge capacity:  ≤ 120kg, It can meet the door type with sash width of 900mm and sash height of 2300mm.
2. When using concealed hinges, add middlelock plate.
3. Please maintain the hardware regularly.
