LIFTING AND SLIDING DOOR SYSTEM

ACCESSORIES LIST

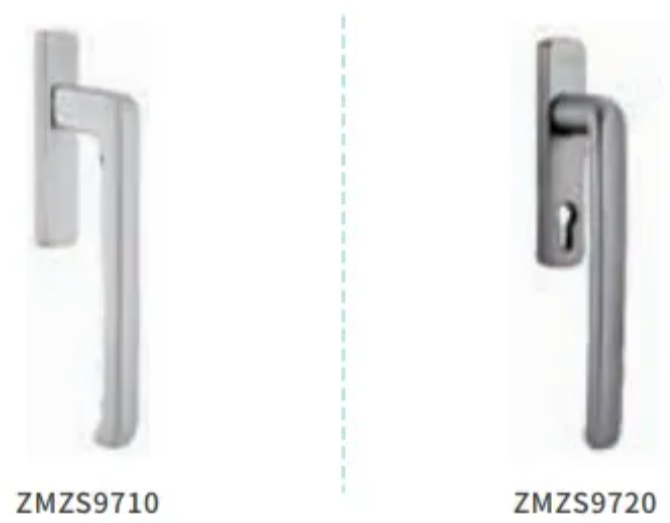

1. Door handle

• Quantity: ZMZS9710
• Quantity: 1
• Remark: P81, Anodizing, Optional

2. Transmission lock

• Code: ZTTL100-01
• Quantity: 1

3. Support block

• Code: ZTTL100-02
• Quantity: 8

4. Back roller

• Code: ZTTL100-03
• Quantity: 1

5. Front roller

• Code: ZTTL100-04

• Quantity: 1

6. Lock catch

• Code: ZTTL100-05
• Quantity: 2

7. Left positioning block

• Code: ZTTL100-06-L
• Quantity: 1
• Remark: Left/Right

8. Right positioning block

• Code: ZTTL100-06-R
• Quantity: 1
• Remark: Left/Right

9. Connecting rod

• Code: ZTTL100-07-400
• Quantity: 1
• Remark: The specification depends on the window type

10. Support seat

• Code: ZTTL100-08
• Quantity: 1

11. Waterproof cover

• Code: ZTTL100-09
• Quantity: 2

12. Support block

• Code:ZTTL100-10
• Quantity: 3

13. Left cover plate

• Code:ZTTL100-11-L
• Quantity: 1
• Remark: Left/Right

14. Upper cover plate

• Code: ZTTL100-12
• Quantity: 1

15. Right plug

• Code: ZTTL100-13-R
• Quantity: 1
• Remark:  Left/Right

16. Anti strike block

• Code: ZFZK10
• Quantity: 1

17. Anti theft block

• Code: ZFDK20
• Quantity: 1

18. Plastic cushion

• Code: ZTTL100-15
• Quantity: 3

PRODUCT FEATURES

1.  The maximum weight of sash is 300kg, and the weight of sash is determined by the load- bearing rollers.
2. Pay attention to the installation position of the lock catch when selecting profiles.
3. If the handle needs for drilling cyclinder, please consult the technician.
4. The maximum sash width is 3000mm, the maximum dooeway height is 2800mm, and the maximum sash height is 2675mm.
5.  It is recommeneded to use middle roller for a single door wider than 200mm.
