Description

FEATURES

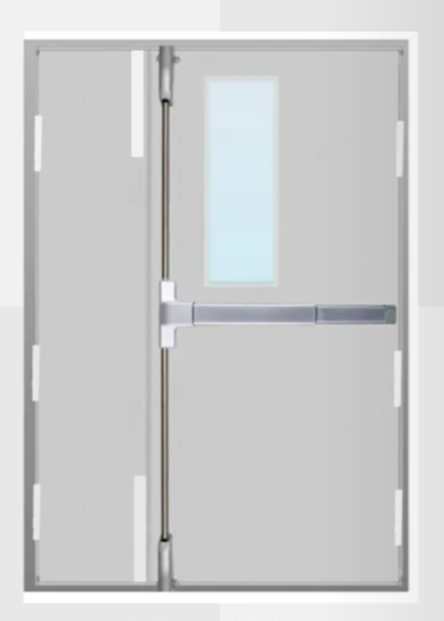

• American standard escape push bar locks combinend with AAmerican standard hinge andAmerican standard door closer are used in escape doors and evacuation doors in densely populated areas of rail transit ( subway, airport,etc.) Theymeets fire certification requirements, ANSI certification, and UL certification.
• Comply with American standards ANSI/BHMA A156.3 grade I, U10C, – 500,000 times durbility test; 90 minutes fiire test
• Passed the national standard GB30051-2013 test, fireproof performance 1.5h
• Applicable for wooden doors, metal doors, fire doors, escape doors
• The lock tongue and ock cover are made of stainless steel 304 precision castings, high strength and wear resisance
• Single oblique struucture, easy to use, no distinction between left and right – Push type opening, convenient for escape
• Main body length: 1040mm
• Pus plate length: 500mm
• Applicable door with: Standard 1040mm, 850-1040mm, cut to short by yourself
• Non standard products beyond this range must be customized
• Upper tied rod: 915mm, lower tie rod 815mm
• Applicable door height: 2080-2130mm, non-standard door height beyond his range needs to be customized
