Description

FEATURES

• Applied to fire doors such as escape doors and evacuation doors
• Passed the nationalstandard GB 30051-2013 test, fire resistance 1.h
• The lock body is design with all-steelparts, and he structuree is strengthened according o the requirements of commercial products, making it more solid and more suitable for use in  harsh environments

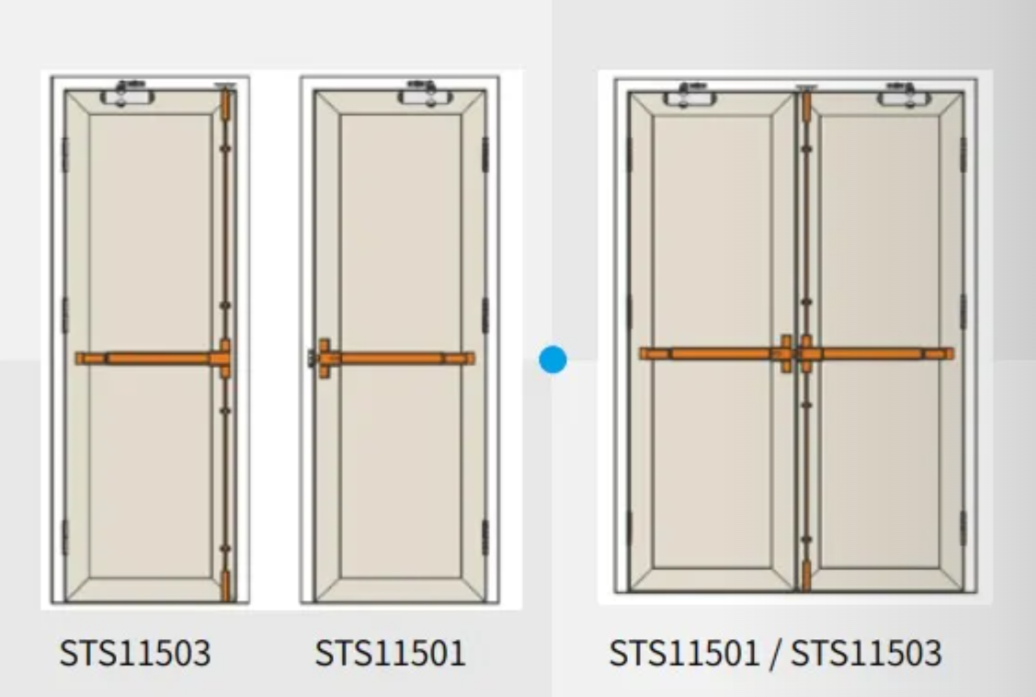

• Used for double doors, to fix the door leaf ssnd lock it
• 304 stainless steel material, with strong anti-destruction andcorrosion resistance
• You can open the door with any part of your body, making it easier to secape
• Main body length: 1040mm
• Push plate length: 500mm
• Applicable door width: standard 1040mm, 650 (750) 1040mm, cut to short by yourself
• Non-standard products beyond this range must be customized
• Upper tie rod: 905mm, lower tie 905mm
• Applicable door height: 2070-2130mmm, Non-stadard door height byond this range needs to be customized
