Description

Technical Parameter

Applicable  Maximum Door Weight: 60 kg
Door Thickness: 10-12 mm
Applicable Door Width: 600-800 mm
Door Height: ≤ 2400 mm
Height Adjustments: +/- 3mm
Horizontal Adjustment: +/- 3mm
Applicable Door Type:

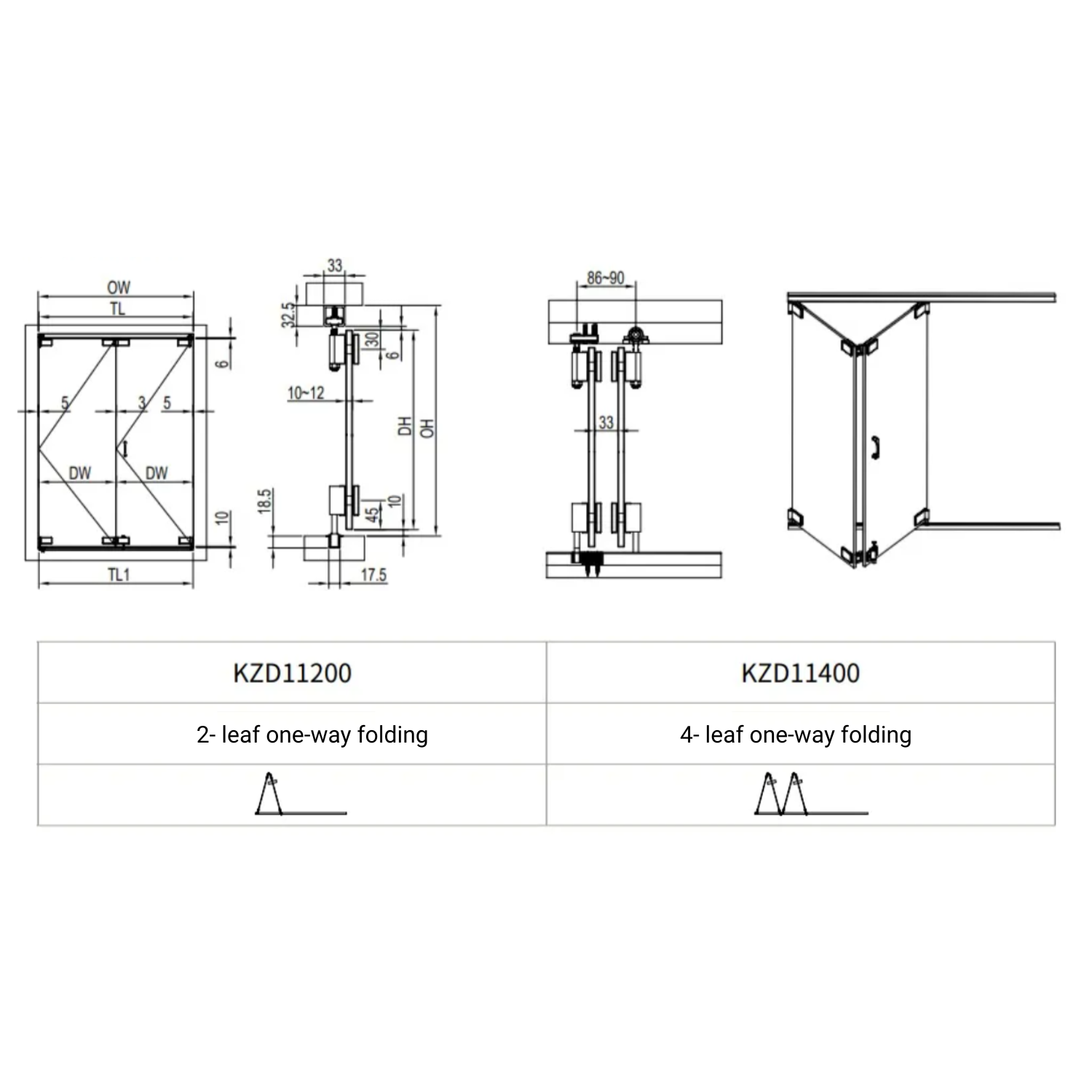

• 2 sash one-way folding
• 4 sash one-way folding

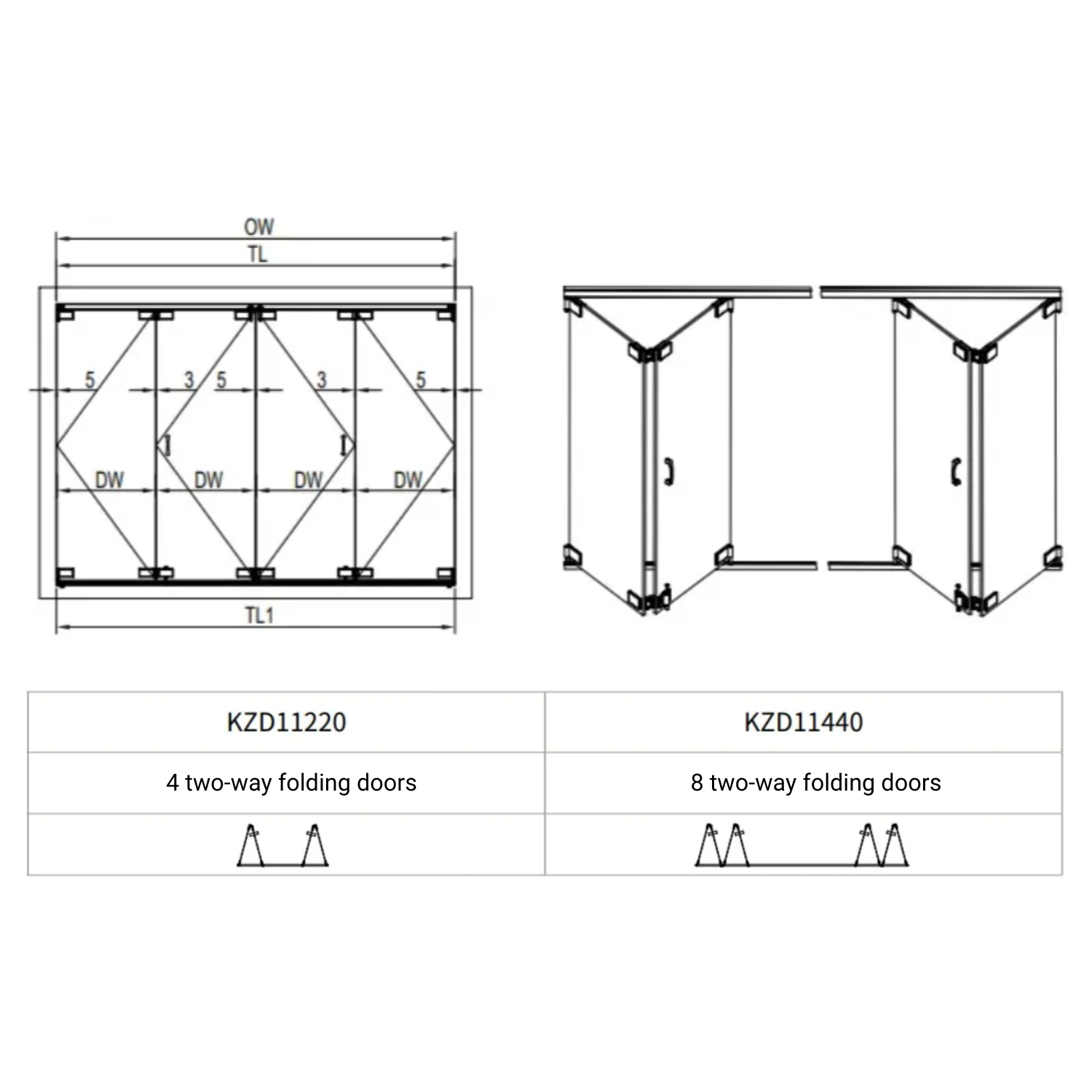

• 4 sash two-way folding
• 8 sash two-way folding


Hanging rail: Aluminum Alloy (anodized, silver white)
Bottom Guide rail: Aluminum Alloy (anodized, silver white)
Fixed Patch: luminum Alloy (anodized, silver white), 304 Stainless steel (natural color)
Folding hinge: Aluminum Alloy (anodized, silver white)
Folding hinge with Wheel: Aluminum Alloy (anodized, silver white), 304 Stainless steel (natural color)
Glass door patch: Aluminum Alloy (anodized, silver white), 304 Stainless steel (natural color)
Pulley: Bearing GCr15 (natural color) + POM (White)

Function and Characteristics

• Suitable for multi one way or two way glass folding doors,
• Suitable for commercial and public areas,
• open the foldable door to the side against the wall, and close the extendable doors as an indoor screen,
• parallel curved concave design at the bottom of the hanging rail, no shaking during sliding, self guided, bottom guide rail keeps door sash stable in sliding and standing state, pulley with high toughness, self lubricating functions and mute vibration reduction,
• horizontal guide wheels effectively prevent door leaves from failling off, eliminating some site tolerance,
• the standard configuration can only be opened and close indoors, when outdoor opening and closing is required, increase the casement sash, glass need opening hole
