Description

Technical Parameter

Applicable Maximum Door Weight: 80 kg
Door Thickness: 10,12 mm
Applicable Door Width: 600-800 mm
Door Height: ≤ 2600 mm
Height Adjustments: +/- 4mm

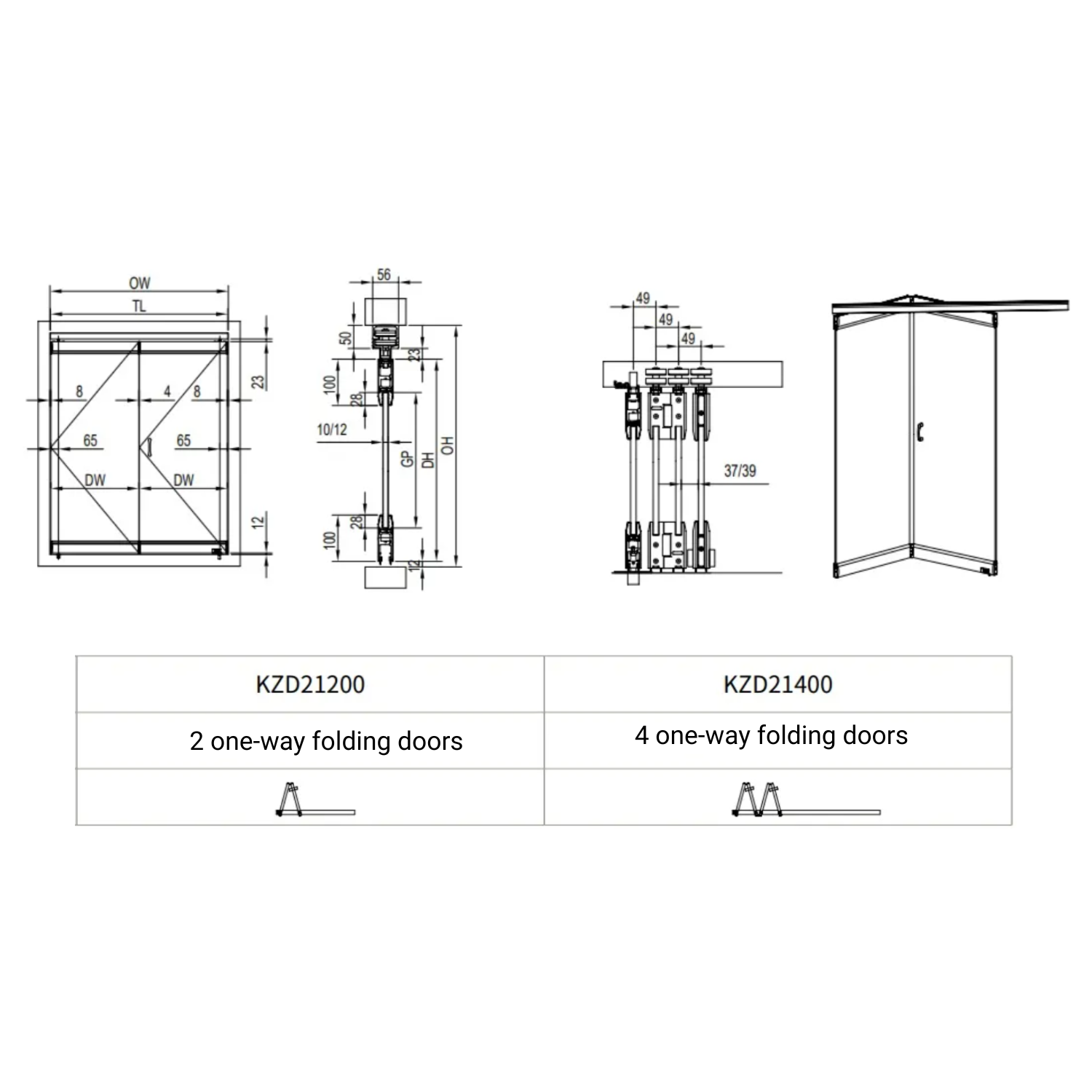

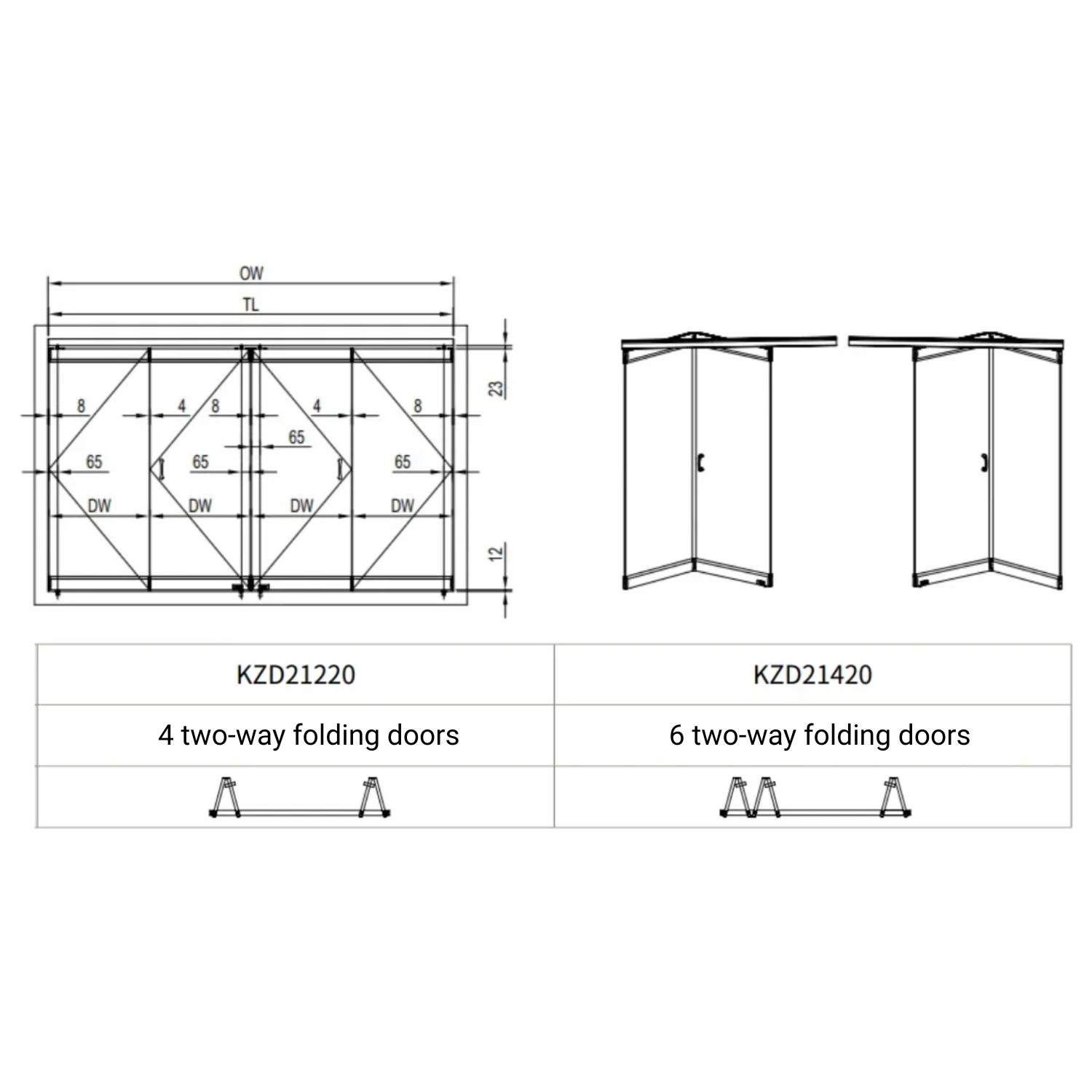

Applicable Door Type:

• 2 sash one-way folding
• 4 sash one-way folding
• 4 sash two-way folding
• 6 sash two-way folding


Hanging Rail: Aluminum Alloy (anodized, silver white)
Mounting: 304 Stainless steel (natural color)
Glass Door Patch: Aluminum Alloy (anodized, silver white),
Universal Wheel Assembly: 304 Stainless steel (natural color)
Hinge: Stainless steel (spray print, black)
Pulley: Bearing GCr15 (natural color) + POM (White)

Function and Characteristics

• Suitable for multi one way or two way glass folding doors,

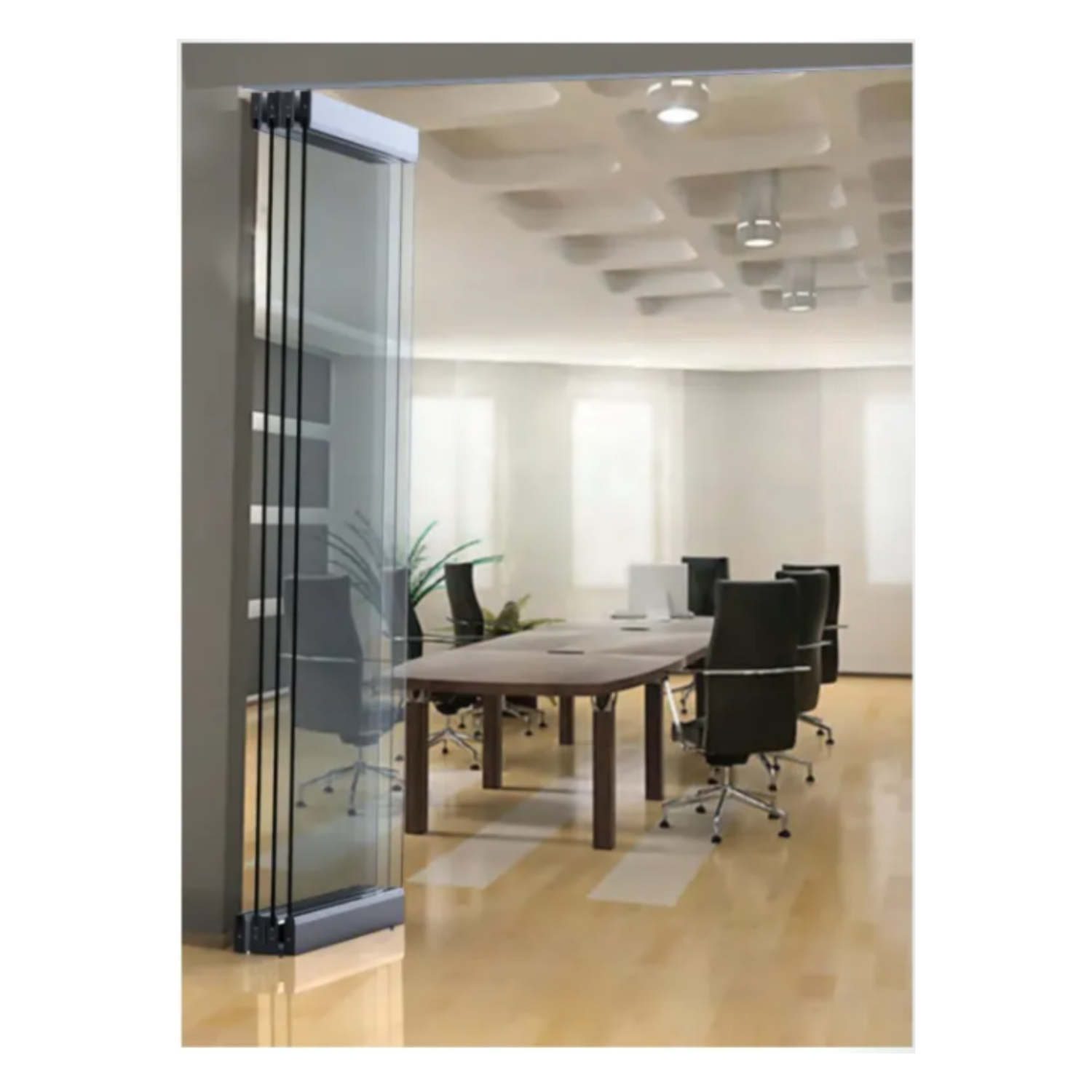

• Suitable for commercial and public areas, open the foldable door to the side against the wall, and close the extendable doors as an indoor screen,
• good permeability and can bring excellent lighting effects, universal caster design, push and pull light, smooth and ultra quiet, pulley with high toughness, self lubricating functions and mute vibration reduction, hinge through shaft design to prevent hinge from failing off,
• does not have a lower guide slot, so there is no need to make a slot in the ground, no opening hole required in the glass
