Description

Technical Parameter

Applicable Maximum Door Weight: 80 kg
Door Thickness: 10,12 mm
Applicable Door Width: 600-900 mm
Door Height: ≤ 2800 mm
Height Adjustments: +/- 4mm
Horizontal Adjustment: +/- 4mm
Applicable Door Type:

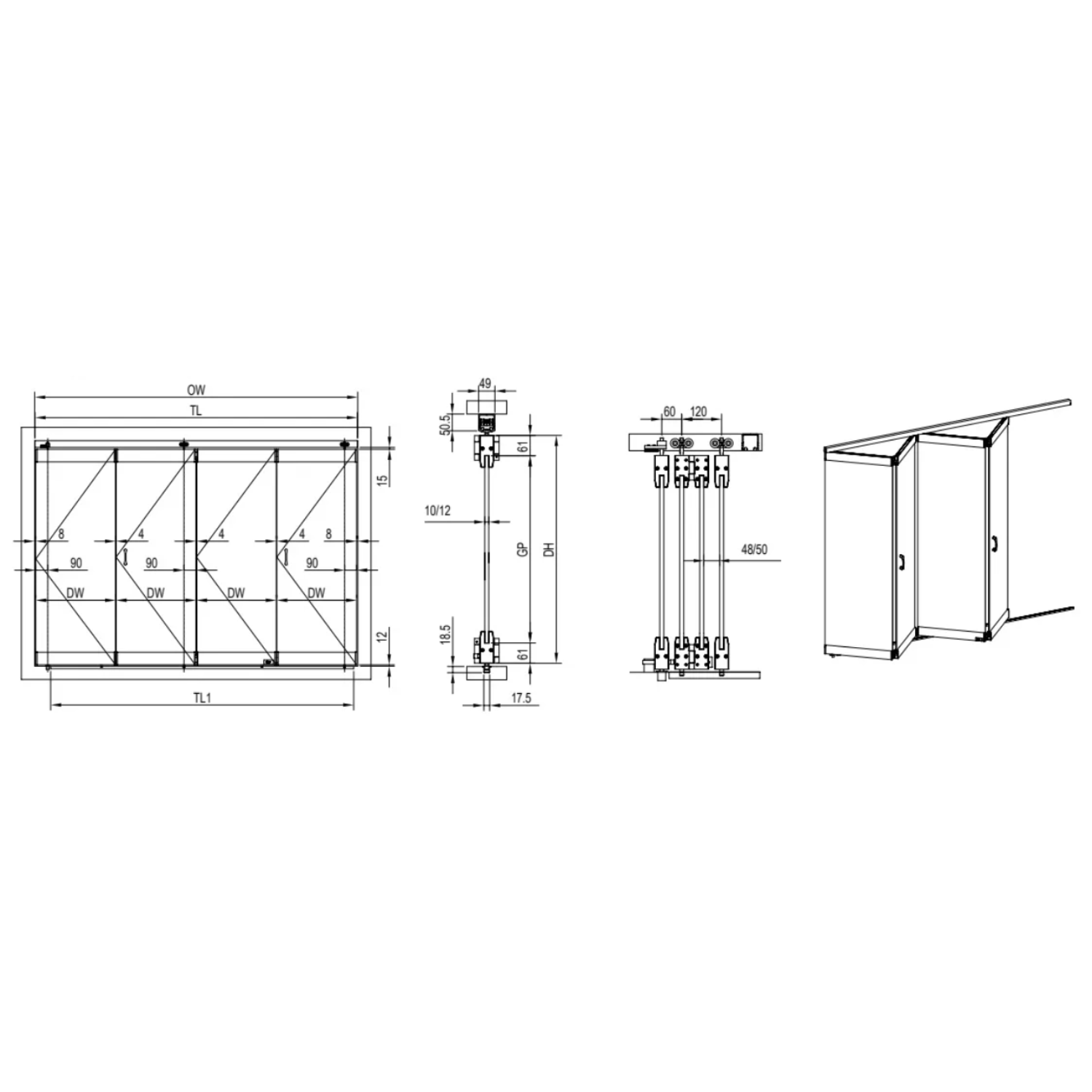

• 2 leaves one-way folding
• 4 leaves one-way folding
• 6 leaves one-way folding

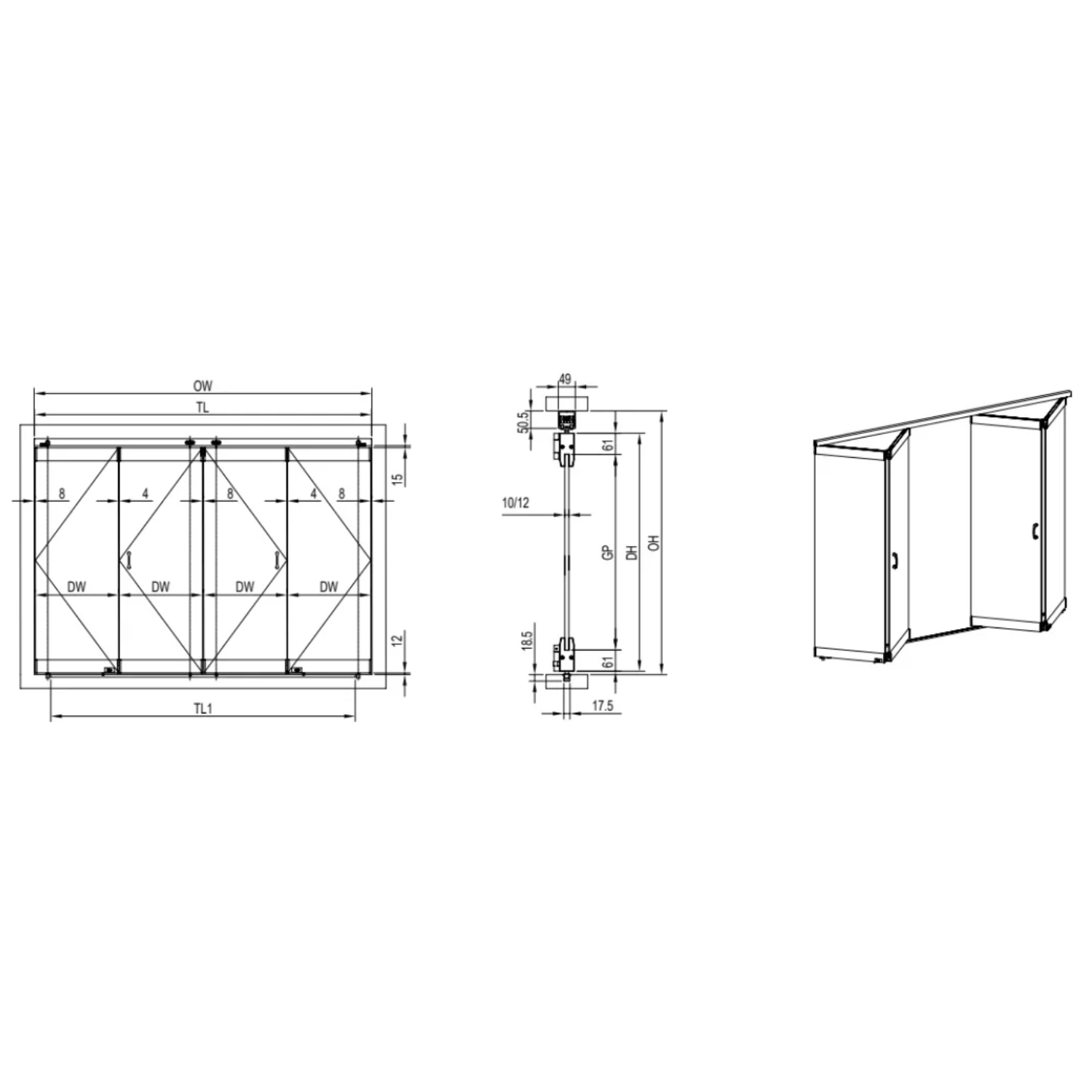

• 4 leaves two-way folding
• 6 leaves two-way folding

Hanging Rail: Aluminum Alloy (anodized, silver white)
Bottom Guide Rail: Aluminum Alloy (anodized, silver white)
Hanging Wheel Assembly: Stainless steel (natural color)
Hinge Assembly: Stainless steel (matte)
Glass Door Patch: Aluminum Alloy (anodized, silver white)
Lower Guide Assembly: Stainless steel (natural color)
End Cover Assembly: Stainless steel (matte)
Pulley: Bearing GCr15 (natural color) + POM (White)

Function and Characteristics

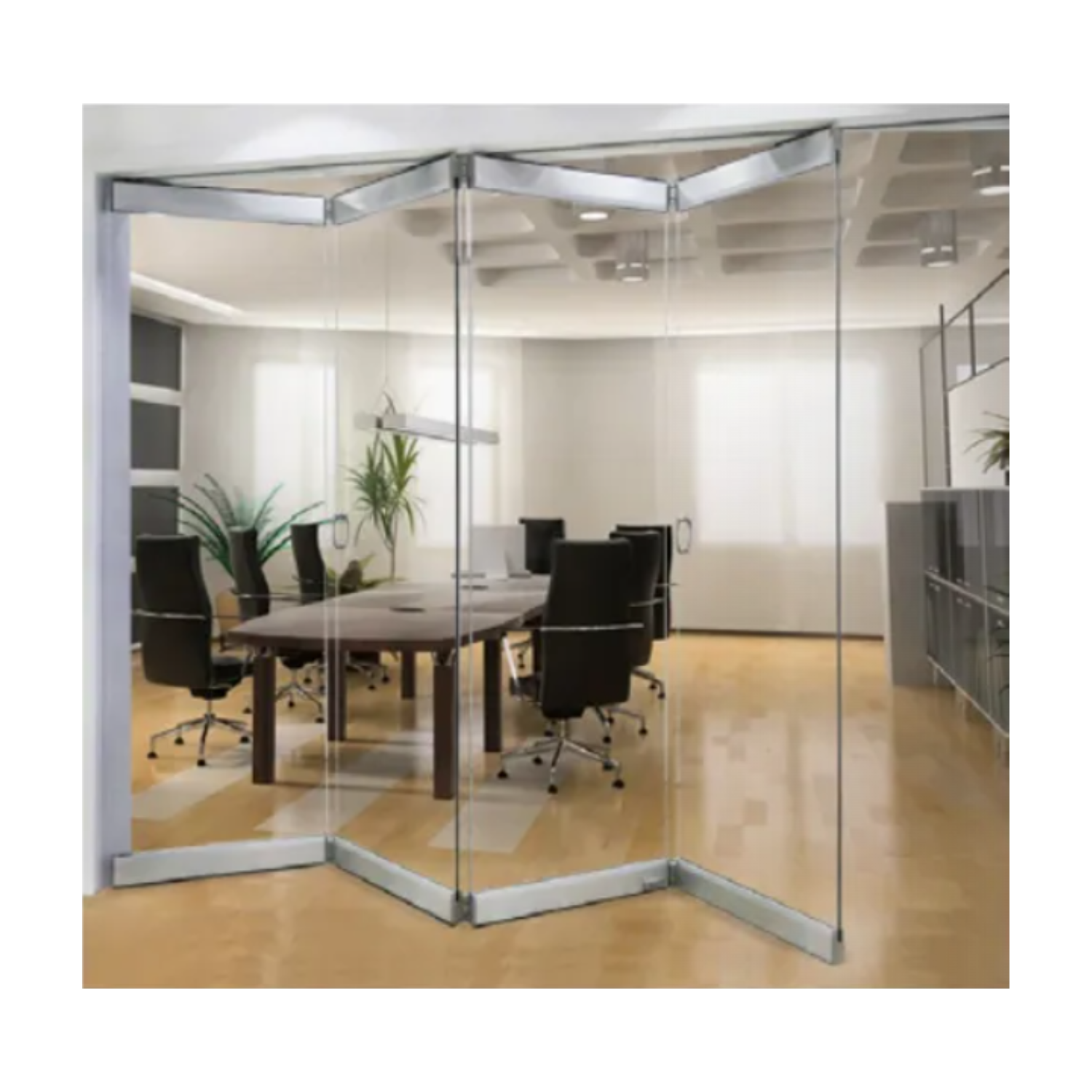

• Suitable for multi one way or two way glass folding doors,
• suitable for commercial and public areas, open the foldable door to the side against the wall, and close the extendable doors as an indoor screen, parallel arc shaped boss at the bottom of the hanging rail, which can be self-guided,self cleaning and automatic compensation, bottom guide rail keeps door sash stable in sliding and standing state, pulley with high toughness, self lubricating functions and mute vibration reduction, hinge through shaft design to prevent hinge from failing off, the patch is a short patch style, standard size, installed on the left and right sides of the door sash,
• the size of the decorative cover can be costumized according to the width of the door sash, or it can be cut by the costumer, glass needs opening hole
